Magnetic Separator
for Dense-Medium Recovery

a.k.a.

Magnetic Separator for Dense-Media Recovery
Magnetic Separator for Coal Preparation
Magnetic Drum Separator
Magnetic Separation Equipment

GTEK Spiral Separator for Dense-Medium Recovery

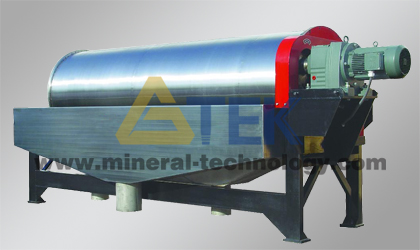

GTEK Magnetic Separator for Dense-Medium Recovery

Description

XCTN series Magnetic separation is designed for recovery of magnetic media circulating in dense media circuit in coal preparation plant. When wet drum magnetic separator is working, slurry is fed to the tank and subsequently flows through the magnetic field generated by the drum. The ferromagnetic minerals are attracted to the drum surface by the magnetic circuit and are rotated out of the slurry stream. The ferromagnetic discharge from the drum surface by the scraper and gravity when rotated out of the magnetic field.

Advantages

1. Fully sealed magnetic system composed by ferrite and rare earth material;
2. Reasonable magnetic distribution benefit for ultimate recovery of finer particles;
3. Ore pulp flow can be properly generated due to exquisite design of the structure;
4. Adaptable for parameter changes such as slurry flow and concentration;
5. Simple structure, large processing capacity, easy operation and maintenance.

Working Principle

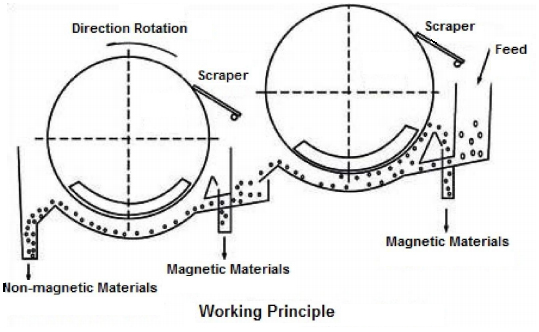

Magnetic Separator for Dense-Medium Recovery Working Principle

Technical Specification

Specification of Magnetic Separator for Dense-Medium Recovery
Model Drum
Size
(mm)
Drum
Length
(mm)
Magnetic
Intensity
(GS)
Processing
Capacity
(t/hr)
Power
(kW)
Rotation
Speed
(r/min)
Weight
(kg)
XCTN-46 400 600 1500-2800 1-3 1.1 45 600
XCTN-66 600 600 1500-2800 5-10 1.1 40 705
XCTN-69 600 900 1500-2800 8-15 1.1 40 830
XCTN-612 600 1200 1500-2800 10-20 2.2 40 990
XCTN-618 600 1800 1500-2800 15-30 2.2 40 1330
XCTN-712 750 1200 1500-2800 15-30 3 35 1500
XCTN-718 750 1800 1500-2800 20-45 3 35 2100
XCTN-918 900 1800 1500-2800 25-55 4 28 2900
XCTN-924 900 2400 1500-2800 35-70 4 28 3500
XCTN-1018 1050 1800 1500-2800 40-75 5.5 22 4000
XCTN-1021 1050 2100 1500-3500 45-88 5.5 22 4500
XCTN-1024 1050 2400 1500-3500 52-100 5.5 22 5000
XCTN-1030 1050 3000 1500-3500 65-125 7.5 22 6200
XCTN-1218 1200 1800 1500-3500 47-90 5.5 19 5800
XCTN-1224 1200 2400 1500-3500 82-120 7.5 19 6200
XCTN-1230 1200 3000 1500-3500 80-150 7.5 19 7200
XCTN-1530 1500 3000 1500-3500 90-170 11 14 8100
XCTN-1540 1500 4000 1500-3500 150-220 11 14 9300
